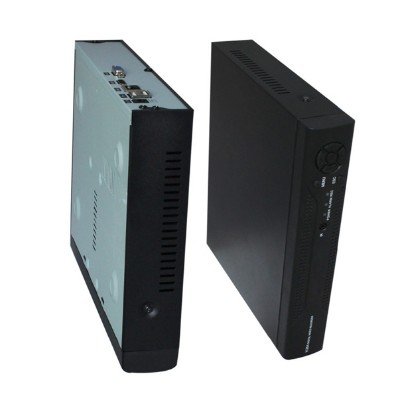

NVR WANSCAM HL0162 8 CANALES

NVR WANSCAM HL0162 8 CANALES

Características Principales:

* Soporta protocolo universal ONVIF - Compatibilidad con cámaras IP de cualquier marca que soporte ONVIF

* Soporta consulta y respaldo de video por eventos (Configurable)

* Grabación de Audio

* Soporta Visualización por canal, y 8 canales simultáneos (Vista previa)

* Nota: Dentro de nuestra oferta de cámaras IP, solo los modelos de la serie HW de Wanscam poseen compatibilidad ONVIF y con NVR.

Imágenes son referenciales.

Ficha Técnica:

- Operating System: Embedded LINUX operating system

- Image Code Control: Image code quality adjustable, variable bitstream optional

- Dual Stream: Each channel can set main stream and sub stream

- Video Standard: 1080P(1920×1080)30fps/960P(1280×960)/720P(1280×720)30fps

- Monitoring Image Quality: 1080P(1920×1080)/960P(1280×960)/720P(1280×720)

- Image Motion Detection: Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)

- Recording Playback Quality: "8ch playbach in 8ch960P/720P mode; 1ch 1080P playback in 8ch 1080P mode."

- Region Cover: Every channel can set 4 cover regions (IPC Support)

- Recording Mode: Support manual, auto, motion detecion, alarm trigger record mode

- Backup Way: Support U disk, USB mobile HDD, USB DVD-RW, nerwork storage and backup

- Operation Way: Mouse

- Local Login: User name and password

- Recording Storage: Local HDD, network

EXTERNAL PORTS:

- Video Input:

"①8×(1280*720)+sub[960*576]+8Ref.+8Play4ch 1.0MP IP Camera"

"②8×(1280*960)+sub[960*576]+1Ref.+8Play8ch 1.3MP IP Camera"

"③8×(1920*1080)+sub[960*576]+8Ref.+1Play8ch 2.0MP IP Camera"

"④1×(1920*1080)+sub[960*576]+Ref.+1Play1ch 2.0MP IP Camera"

"⑤4×(720*576)+sub[352*288]+8Ref.+4Play4ch D1 IP Camera"

- Audio Input: 4ch network audion input

- Audio Output: 1ch RCA

- Video Output: 1ch VGA+1ch HDMI

- Network Port: 1 RJ45, 10M/100M self-adaptive LAN port

- RS485 Port---/

- USB Port: 3×USB 2.0 ports(one on front panel, two rear panel)

- HDD Port: 1×SATA HDD Port MAX Capacity Each port supports MAX 4TB HDD

- Mobile Surveillance: Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

- Power Supply: 12V2.6A

- Power Consumption: ≤25W(without HDD)

- Working Temperature: -10℃~+55℃

- Working Humidity: 10%-90%

- Dimension: Equipment: 260mm×220mm×43mm, Packing: 355mm×255mm×88.5mm

- Weight(without HDD): N.W.: 1.5Kg; With Package:2.6Kg

- Outside Carton:10 pcs/carton. 525mm×455mm×365mm; Weight:25Kg

- Installation Way: Desktop Installation
