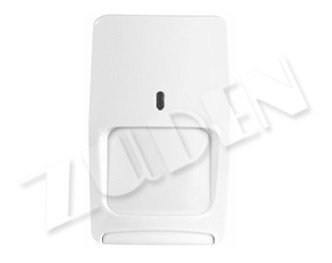

SENSOR DE MOVIMIENTO INFRARROJO (PIR) PARA ALARMAS

SENSOR DE MOVIMIENTO INFRARROJO (PIR) PARA ALARMAS

Sensor infrarrojo de movimiento, compatible con alarmas inalámbricas en 433mhz (las comercializadas en Chile).

Distancia de detección mínima: 11 metros.


NO INCLUYE BATERÍAS

Especificaciones:

- Detection mode: Dual PIR & MW complex

- Pet-immunity: 25kg

- Detection range: 11M; Detection angle: 110°

- Infrared range: 9+5+3, Max Coverage: 11m*11m(36"*36")/90°

- Microwave frequency: 10.525GHz

- Mounting height: 1.8m~2.4m(Surface or corner mount)

- Working voltage: 9~16VDC; Working current: DC12V@9mA

- Working temperature:-:-10℃~+50℃; relative humidity:5%~95%RH

- Anti EMI: >9000LUX; Anti-white light: >20V/M (20MHz~1000MHz)

- Alarm output: solid relay,NC

- Product Dimension: 125×74×43mm / Packing box: 14.5×8×6.5CM; Weight: 0.2Kg/pc

Compartir este producto en:

Precio: $6.900 CLP

Marca: ZUDEN

SKU: Sensor infrarojo PIR inalámbrico

Cantidad:

Sensor infrarrojo de movimiento, compatible con alarmas inalámbricas en 433mhz (las comercializadas en Chile).

Distancia de detección mínima: 11 metros.


NO INCLUYE BATERÍAS

Especificaciones:

- Detection mode: Dual PIR & MW complex

- Pet-immunity: 25kg

- Detection range: 11M; Detection angle: 110°

- Infrared range: 9+5+3, Max Coverage: 11m*11m(36"*36")/90°

- Microwave frequency: 10.525GHz

- Mounting height: 1.8m~2.4m(Surface or corner mount)

- Working voltage: 9~16VDC; Working current: DC12V@9mA

- Working temperature:-:-10℃~+50℃; relative humidity:5%~95%RH

- Anti EMI: >9000LUX; Anti-white light: >20V/M (20MHz~1000MHz)

- Alarm output: solid relay,NC

- Product Dimension: 125×74×43mm / Packing box: 14.5×8×6.5CM; Weight: 0.2Kg/pc
